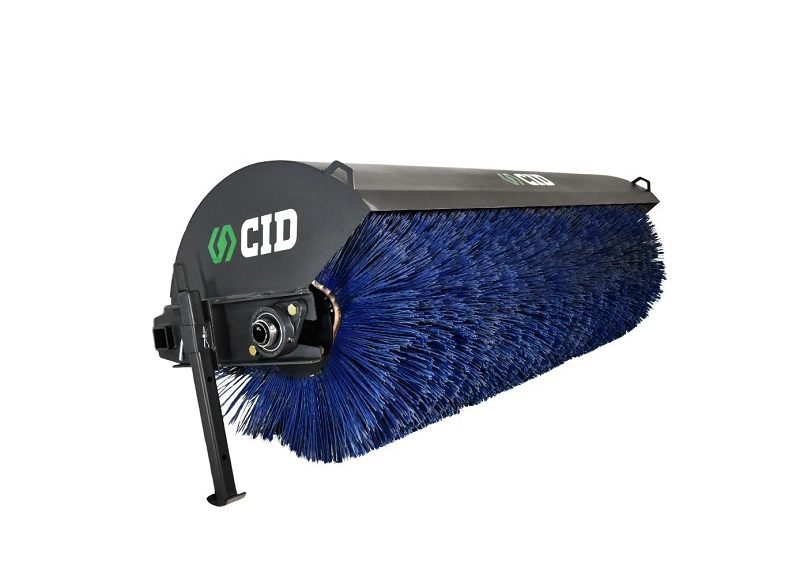

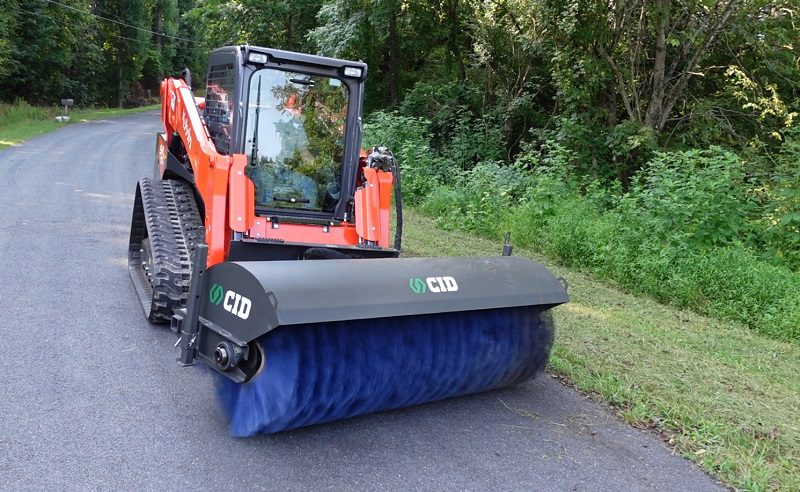

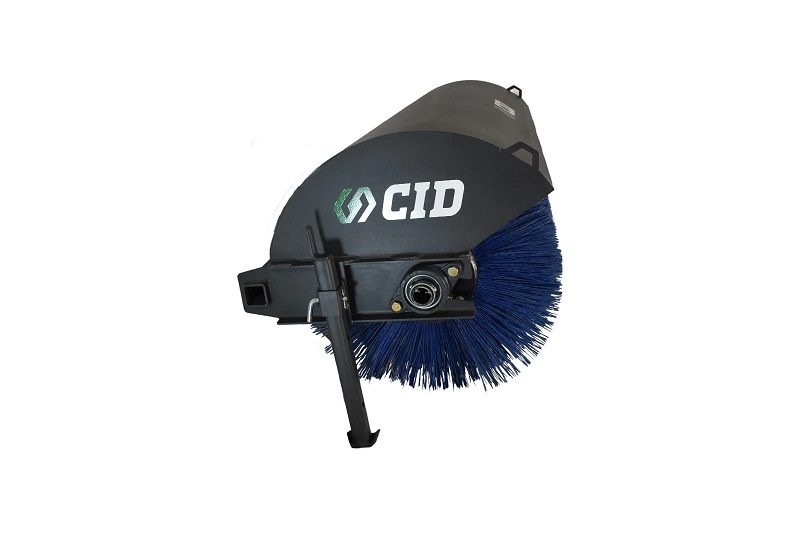

Broom – Angle Broom Attachment – CID

New 84″ CID X-Treme Duty Hydraulic Angle Broom attachment for skid steer loaders, track loaders and utility tractors. This angle broom comes fully assembled and features a structurally superior main frame designed to withstand the most demanding sweeping applications. This model includes a 32″ diameter replaceable poly wafer package powered by a heavy-duty Parker direct drive motor with a hydraulic flow range of 12-28 GPM. Other key features include a heavy-duty 3″ bore x 6″ stroke American made angle cylinder, two(2) adjustable / removable storage stands, 2″ center angle / pivot pin, greaseable pivot points & bearings, Parker hoses and flat-faced couplers. The universal quick attach plate fits most makes and models of skid steer & track loaders on the market today. Weight is 890 lbs. Optional wire or poly/wire combo wafer packages available. Optional manual angle model offered. Available in 48″, 60″, 72″, & 84″ sizes.

Compare & Save.  Made in the USA!



Broom – Angle Broom Attachment – CID

New 84″ CID X-Treme Duty Hydraulic Angle Broom attachment for skid steer loaders, track loaders and utility tractors. This angle broom comes fully assembled and features a structurally superior main frame designed to withstand the most demanding sweeping applications. This model includes a 32″ diameter replaceable poly wafer package powered by a heavy-duty Parker direct drive motor with a hydraulic flow range of 12-28 GPM. Other key features include a heavy-duty 3″ bore x 6″ stroke American made angle cylinder, two(2) adjustable / removable storage stands, 2″ center angle / pivot pin, greaseable pivot points & bearings, Parker hoses and flat-faced couplers. The universal quick attach plate fits most makes and models of skid steer & track loaders on the market today. Weight is 890 lbs. Optional wire or poly/wire combo wafer packages available. Optional manual angle model offered. Available in 48″, 60″, 72″, & 84″ sizes.

Compare & Save.  Made in the USA!



Description

Features

  • Constructed in the U.S.A. with quality American made steel
  • HD 3″ bore x 6″ stroke American made angle cylinder
  • 32″ diameter zig-zag style poly wafers / brushes
  • Two(2) adjustable / removable storage stands
  • Flow range of 12-28 GPM (gallons per minute)
  • Optional wire & poly/wire wafer packages
  • Optional manual angle model available
  • Universal quick-attach mounting plate
  • Parker hoses and flat-faced couplers
  • Greaseable pivot points & bearings

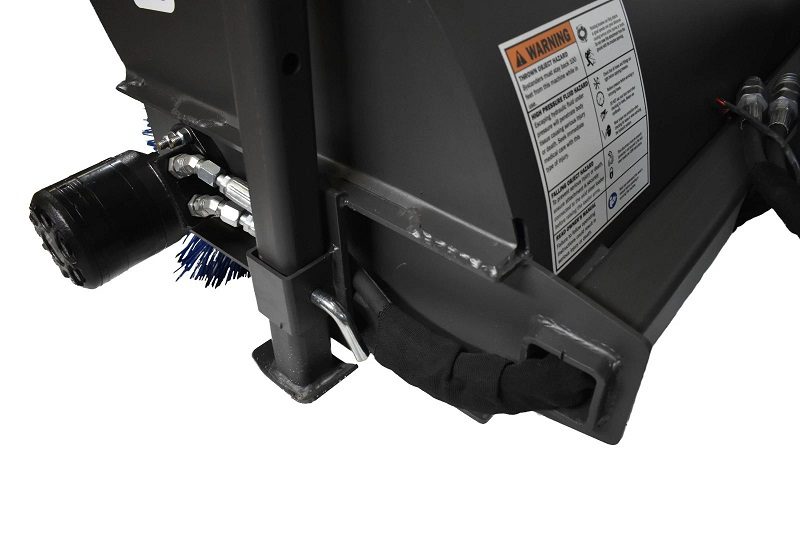

  • Parker hydraulic direct drive motor
  • One year limited factory warranty
  • Universal electrical wire harness
  • HD 3″ square tubed steel frame
  • HD 2″ center pivot / angle pin
  • Powder coat finish
  • Overall Dimensions: 96″ Wide x 34″ Tall x 62″ Deep
  • 890 lbs

P/N: CID HAB60 HAB72 HAB84

Additional information

Sizes

48", 60", 72", 84"

Fits the Following

Universal Quick Attach – Fits Most Makes & Models
