Grapple Rake Attachment – CID Standard Duty

New 72″ CID Standard-Duty Grapple Rake attachment for skid steer / track loaders and utility tractors. Constructed from 3/8″ thick AR400 grade steel throughout, this grapple rake features two(2) American made 2″ bore x 10″ stroke cylinders, greaseable pivot points, Parker hoses and flat faced couplers. The structurally superior main frame is supported by nine(9) vertical 3/8″ thick steel tines spaced every 9 inches. The optimal tine spacing allows dirt, debris, smaller rocks, and other unwanted loose material to fall through and remain on the job site. The universal quick attach plate fits most makes and models of skid steer loaders and track loaders. This grapple is ideal for picking up and moving: rocks, logs, brush, scrap, debris or any other odd shaped or hard to move material. Weight is 550 lbs. Available in 60″, 66″ and 72″ sizes.

Compare & Save.
  Made in the USA!



Description

Features

  • Constructed in the U.S.A. with AR400 American made steel
  • Two(2) HD 2″ bore x 10″ stroke American made cylinders
  • Nine(9) 3/8″ thick vertical support tines spaced every 9″
  • Universal quick-attach mount fits most machines
  • Parker hoses and flat-faced couplers
  • One year limited factory warranty
  • Rated for machines up to 60 HP
  • Greaseable pivot points

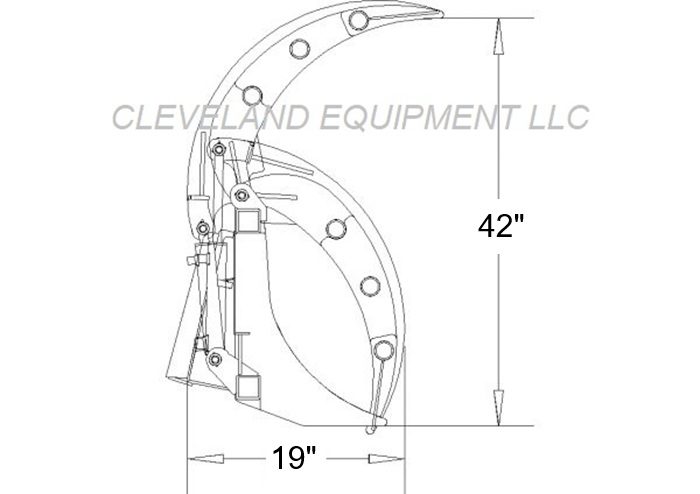

  • 42″ grapple opening
  • 550 lbs

P/N: CID ARSGR60 ARSGR66 ARSGR72

Additional information

Sizes

60", 66", 72"

Fits the Following

Universal Quick Attach – Fits Most Makes & Models
