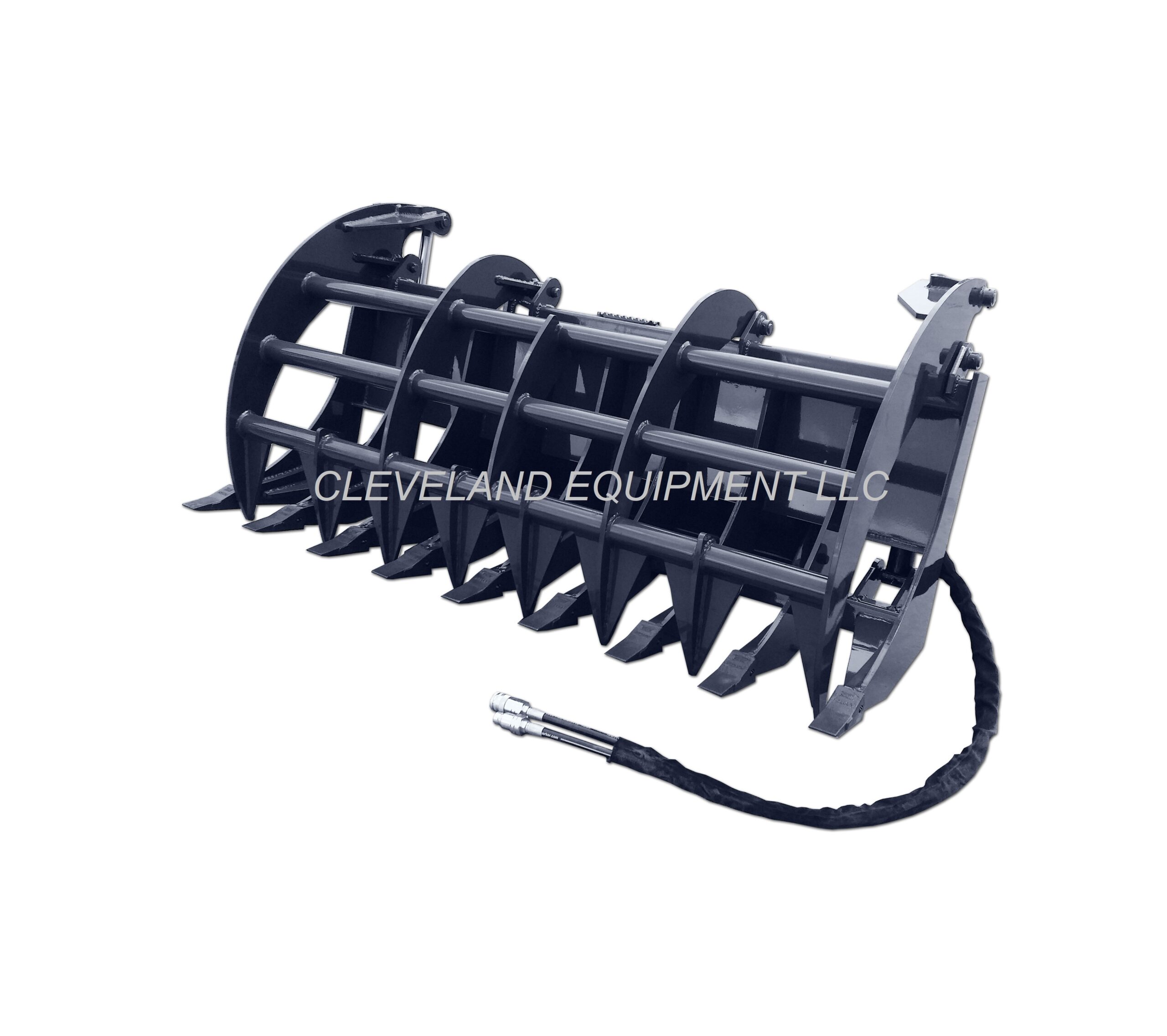

Grapple Rake Attachment – CID X-Treme Duty

New 72″ CID Extreme-Duty Grapple Rake attachment for skid steer / track loaders and compact wheel loaders. Constructed from 1/2″ thick steel throughout, this grapple rake features two(2) HD American made 2″ bore x 10″ stroke cylinders. The structurally superior main frame is supported by nine(9) vertical 1/2″ thick steel tines spaced every 8 inches. The optimal tine spacing allows dirt, debris, smaller rocks, and other unwanted loose material to fall through and remain on the job site. This unit includes nine(9) large 23 series replaceable teeth, greaseable pivot points, Parker hoses & flat-faced couplers. The universal quick attach plate fits most makes and models of skid steer loaders and track loaders. This grapple is ideal for picking up and moving: rocks, logs, brush, scrap, debris or any other odd shaped or hard to move material. Weight is 942 lbs. Available in 66″, 72″, 78″, 84″ & 96″ sizes.

Compare & Save.
  Made in the USA!



Grapple Rake Attachment – CID X-Treme Duty

New 72″ CID Extreme-Duty Grapple Rake attachment for skid steer / track loaders and compact wheel loaders. Constructed from 1/2″ thick steel throughout, this grapple rake features two(2) HD American made 2″ bore x 10″ stroke cylinders. The structurally superior main frame is supported by nine(9) vertical 1/2″ thick steel tines spaced every 8 inches. The optimal tine spacing allows dirt, debris, smaller rocks, and other unwanted loose material to fall through and remain on the job site. This unit includes nine(9) large 23 series replaceable teeth, greaseable pivot points, Parker hoses & flat-faced couplers. The universal quick attach plate fits most makes and models of skid steer loaders and track loaders. This grapple is ideal for picking up and moving: rocks, logs, brush, scrap, debris or any other odd shaped or hard to move material. Weight is 942 lbs. Available in 66″, 72″, 78″, 84″ & 96″ sizes.

Compare & Save.
  Made in the USA!



Description

Features

  • Constructed in the U.S.A. with quality American made steel
  • Two(2) HD 2″ bore x 10″ stroke American made cylinders
  • Nine(9) 1/2″ thick vertical support tines spaced every 8″
  • Universal quick-attach mount fits most machines
  • Parker hoses and flat-faced couplers
  • Solid HD construction and design
  • One year limited factory warranty
  • Large replaceable 23 series teeth
  • Greaseable pivot points
  • 51″ grapple opening
  • 942 lbs

Additional information

Sizes

72", 78", 84"

Fits the Following

Universal Quick Attach – Fits Most Makes & Models
