Mini Multipurpose Log Grapple – ERSKINE

New Erskine Attachments Mini Multi-Purpose Log Grapple Attachment for mini skid steer loaders and track loaders. This grapple features a manual rotating grapple head with a 67″ grapple opening that closes to less than 1″ allowing you to pick up and transport almost any tree, log, rock or brush your loader can handle. Ships fully assembled and includes Parker hoses and flat-faced couplers. Weight is 321 lbs. Available with both Mini Universal (Toro Dingo, Ditch Witch, Vermeer…etc.) or Bobcat MT / 463 / S70 mini skid steer mounts.

Compare & Save.  Made in the USA!



SKU: N/A Category: Tags: , , ,

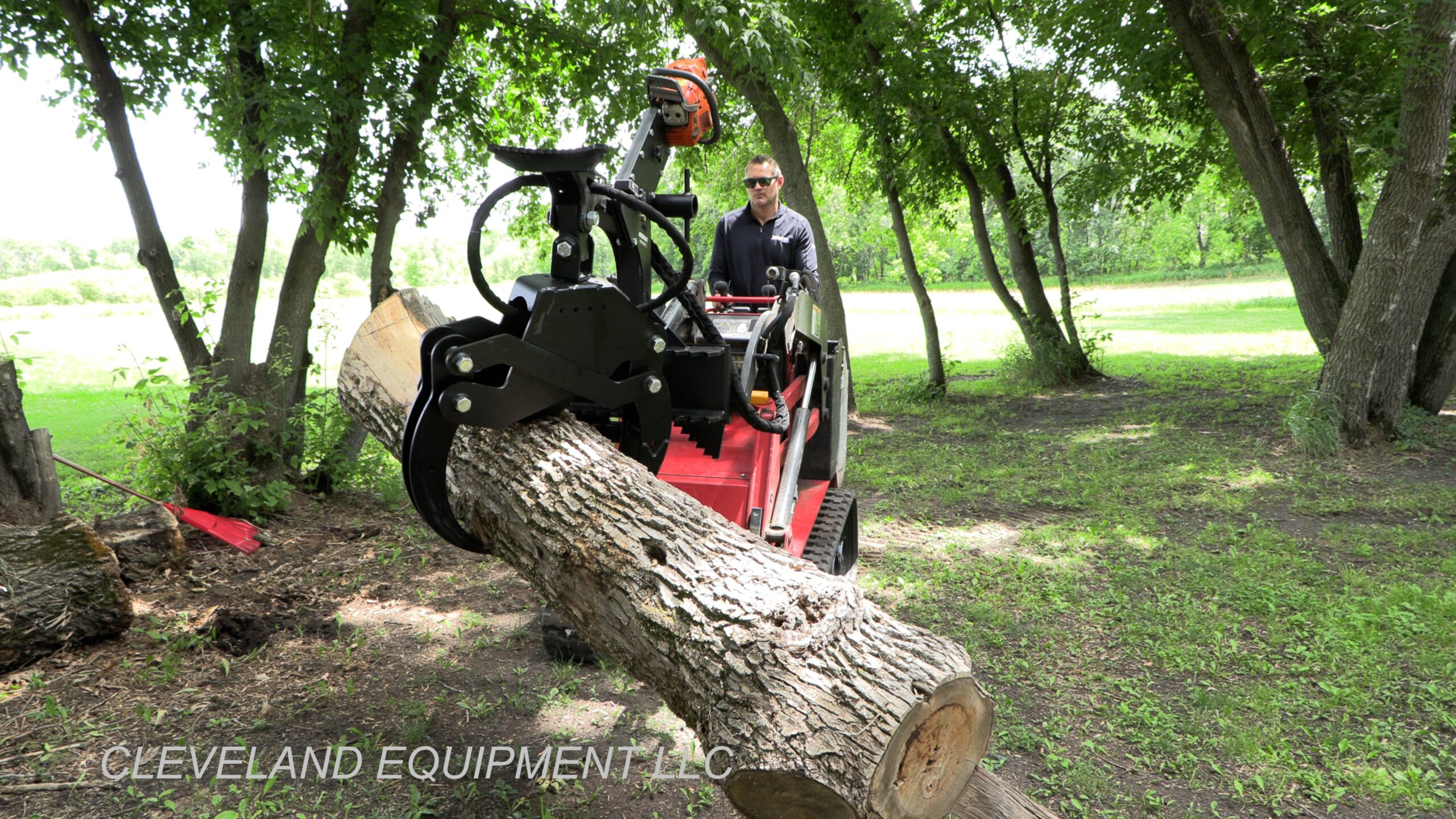

Mini Multipurpose Log Grapple - ERSKINE

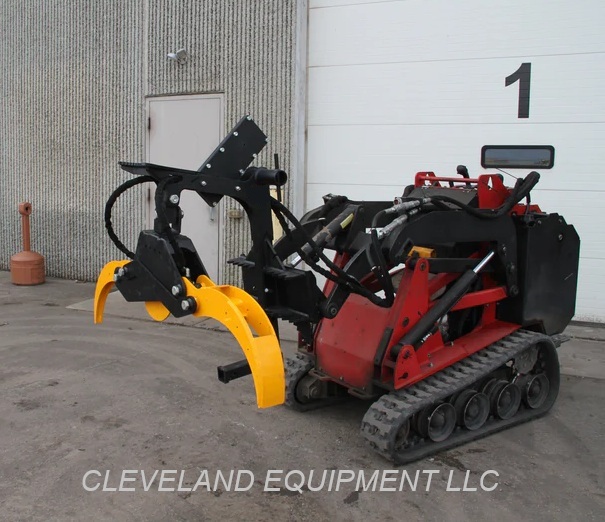

Mini Multipurpose Log Grapple - ERSKINE - Image 2

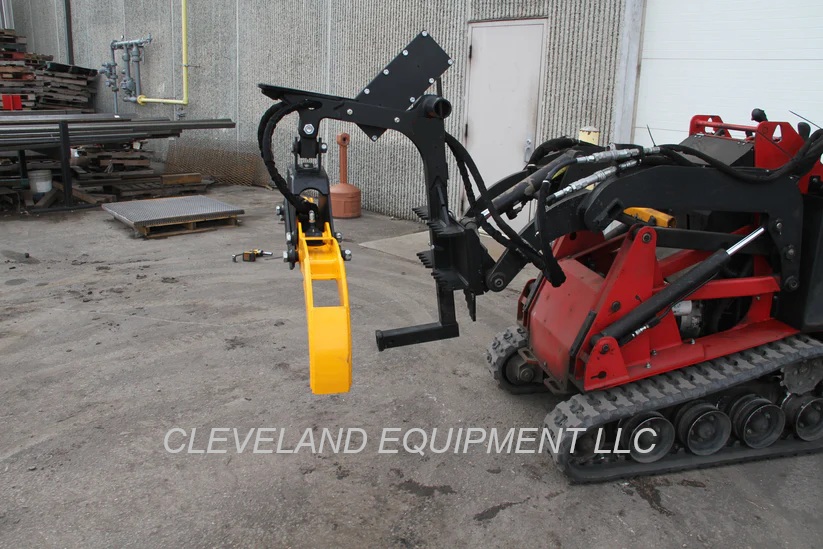

Mini Multipurpose Log Grapple - ERSKINE - Image 3

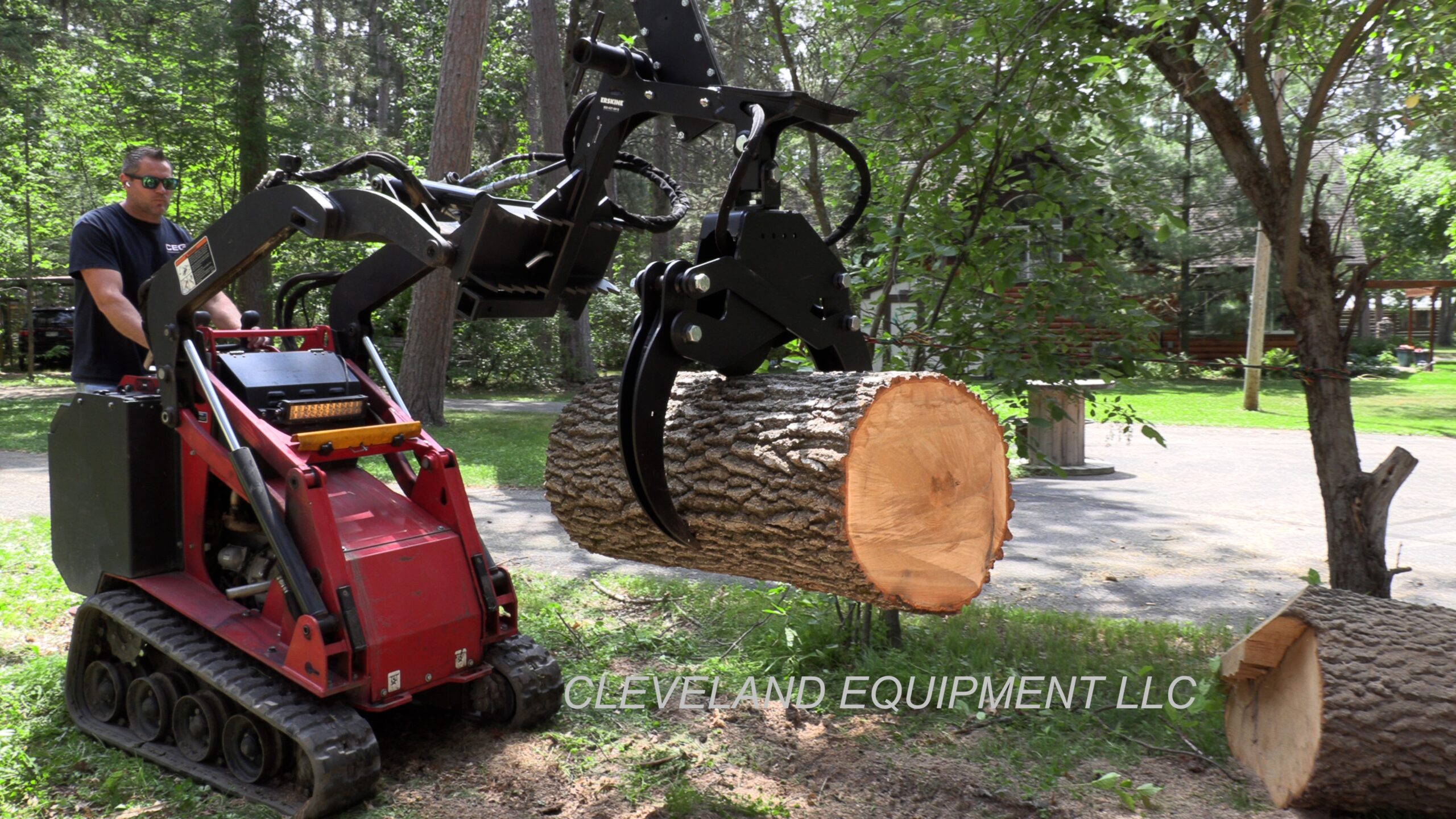

Mini Multipurpose Log Grapple - ERSKINE - Image 4

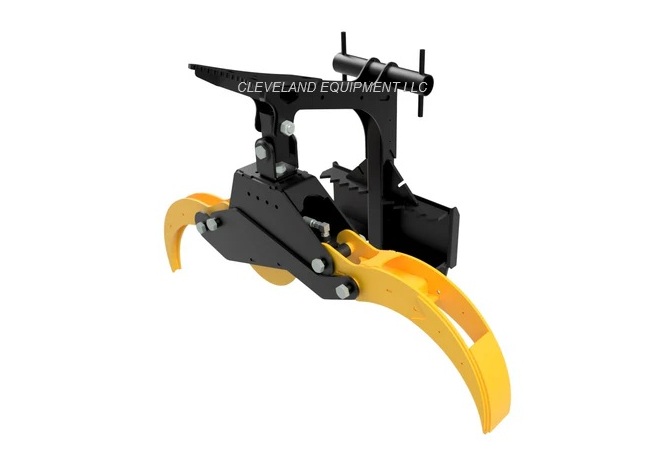

Mini Multipurpose Log Grapple - ERSKINE - Image 5

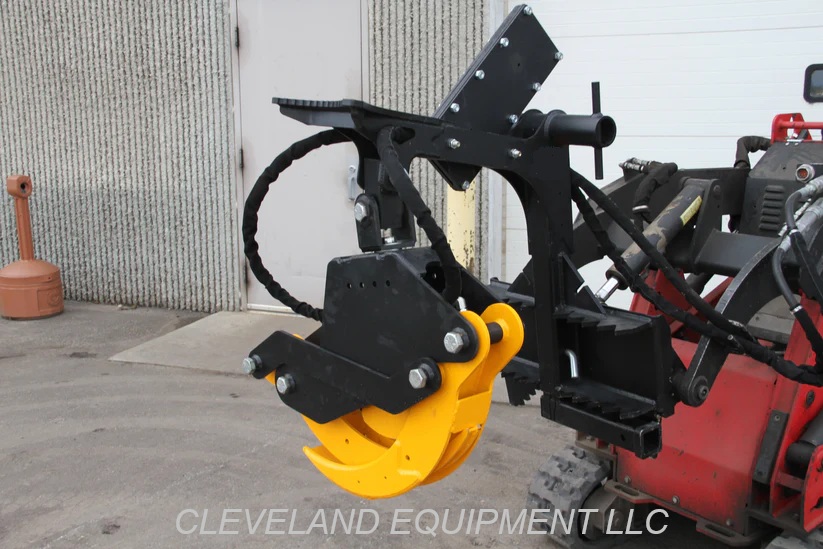

Mini Multipurpose Log Grapple - ERSKINE - Image 6

Mini Multipurpose Log Grapple – ERSKINE

New Erskine Attachments Mini Multi-Purpose Log Grapple Attachment for mini skid steer loaders and track loaders. This grapple features a manual rotating grapple head with a 67″ grapple opening that closes to less than 1″ allowing you to pick up and transport almost any tree, log, rock or brush your loader can handle. Ships fully assembled and includes Parker hoses and flat-faced couplers. Weight is 321 lbs. Available with both Mini Universal (Toro Dingo, Ditch Witch, Vermeer…etc.) or Bobcat MT / 463 / S70 mini skid steer mounts.

Compare & Save.  Made in the USA!



SKU: N/A Category: Tags: , , ,

Description

SPECIFICATIONS

  • Constructed in the U.S.A. with quality American steel
  • Rotates in either direction with 4 locking positions
  • Mini skid steer universal quick-attach mounting
  • Optional hydraulic rotation available
  • Parker hoses & flat-faced couplers
  • One year limited factory warranty
  • Built in chain saw scabbard
  • Fold down 2″ trailer hitch
  • 5-15 GPM hydraulic flow
  • Greaseable pivot points
  • Dual sided rope bollard
  • Max jaw opening: 67″
  • Max jaw closing: 1″
  • 321 lbs

P/N: Erskine Attachments 901922 (901314)

Additional information

Options

Bobcat MT/463/S70 Mini Mount, Mini Universal Mount (Toro Dingo, Ditch Witch, Vermeer)

Fits the Following

Available with Mini Universal Mount (Toro Dingo, Ditch Witch, Vermeer) OR Bobcat MT/463/S70 Mini Mount.
